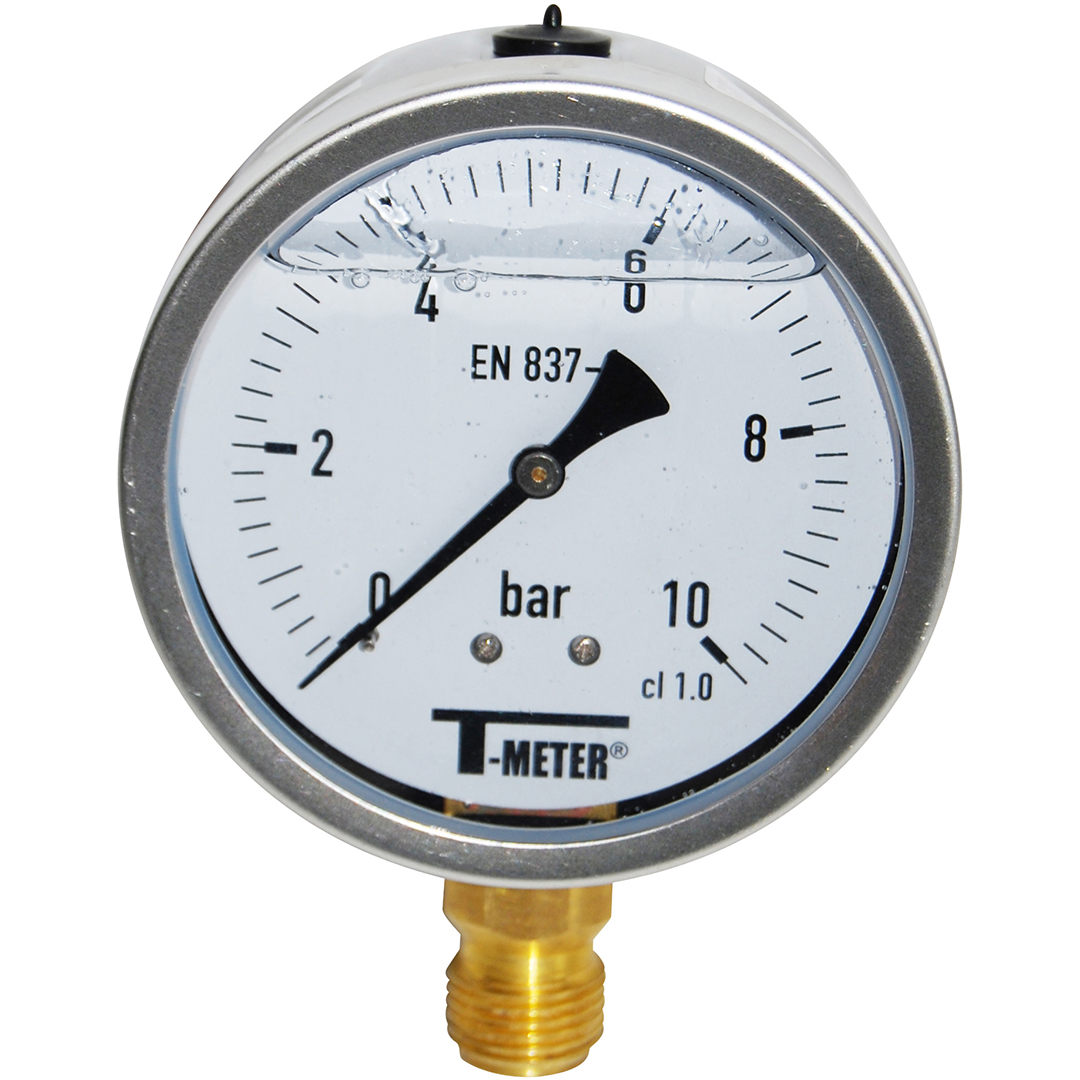

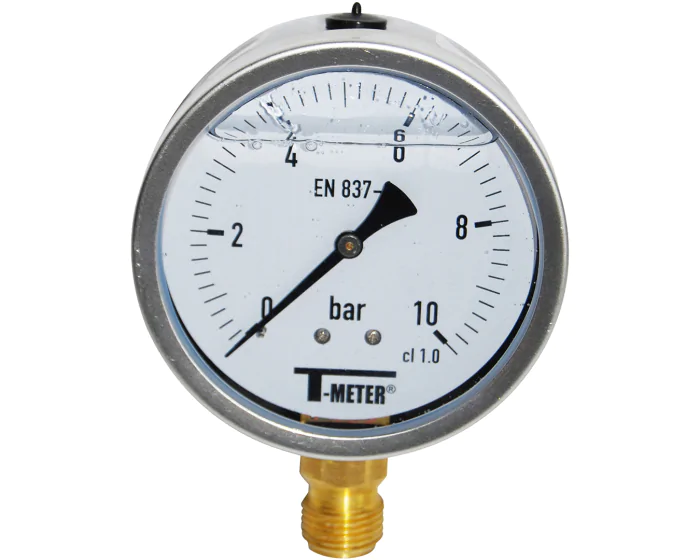

Syveco offers the 1615 pressure gauge consisting of a stainless steel case with a diameter of 100, a 1/2'' BSP radial fitting, class 1, polycarbonate glass, tin-welded brass bourdon pipe, for hydraulic use
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Construction standard | EN 837-1 |
| Brand | T-METER |
| Pressure range | -1 / 1 Bar |
| Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
| Dial diameter (mm) | 100 |
| Fluid | Cold water |
| Protection index (IP) | IP 65 |
| Housing material | Stainless steel |
| Connections | BSP M |
| TS max (°C) | 60 |
| TS min (°C) | 0 |
| Pressure gauge type | Glycerine pressure gauge |
| Warranty period | 2 years |
| Pressure gauge connection | Radial |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP M -1 / 1 Bar | 1615001 | S1013603 |
€22.13
(excl. btw)
|
add to cart |
| BSP M 0 / 1.6 Bar | 1615002 | S1013604 |
€22.13
(excl. btw)
|
add to cart |
| BSP M 0 / 2.5 Bar | 1615003 | S1013605 |
€22.13
(excl. btw)
|
add to cart |
| BSP M 0 / 4 Bar | 1615004 | S1013606 |
€22.13
(excl. btw)
|
add to cart |
| BSP M 0 / 6 Bar | 1615005 | S1013607 |
€22.13
(excl. btw)
|
add to cart |
| BSP M 0 / 10 Bar | 1615006 | S1013608 |
€22.13
(excl. btw)
|
add to cart |
| BSP M 0 / 16 Bar | 1615007 | S1013609 |
€22.13
(excl. btw)
|
add to cart |
| BSP M 0 / 25 Bar | 1615008 | S1013610 |
€22.13
(excl. btw)
|
add to cart |
| BSP M 0 / 40 Bar | 1615009 | S1013611 |
€22.13
(excl. btw)
|
add to cart |
| BSP M 0 / 60 Bar | 1615010 | S1013612 |
€22.13
(excl. btw)
|
add to cart |
| BSP M 0 / 100 Bar | 1615011 | S1013613 |
€22.13
(excl. btw)
|
add to cart |
| BSP M 0 / 160 Bar | 1615012 | S1013614 |
€22.13
(excl. btw)
|
add to cart |
| BSP M 0 / 250 Bar | 1615013 | S1013615 |
€22.13
(excl. btw)
|
add to cart |
| BSP M 0 / 400 Bar | 1615014 | S1013616 |
€22.13
(excl. btw)
|
add to cart |
| BSP M 0 / 600 Bar | 1615015 | S1013617 |
€22.13
(excl. btw)
|
add to cart |
